Product details
- ISBN 9781138078826
- Weight: 272g
- Publication Date: 12 May 2017
- Publisher: Taylor & Francis Ltd
- Publication City/Country: GB
Secure
checkout
Fast Shipping
Easy returns

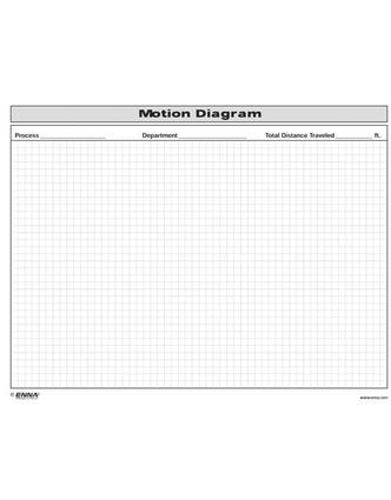

The effectiveness of the Motion Diagram is in how it illustrates the amount of motion that takes place during a setup of a machine or in the changeover of a model type. Use this form to visually demonstrate the amount of travel a person makes during a setup. This form is often called a Spaghetti Diagram, as the form usually looks like a bowl of spaghetti when all the lines of motion are drawn.
